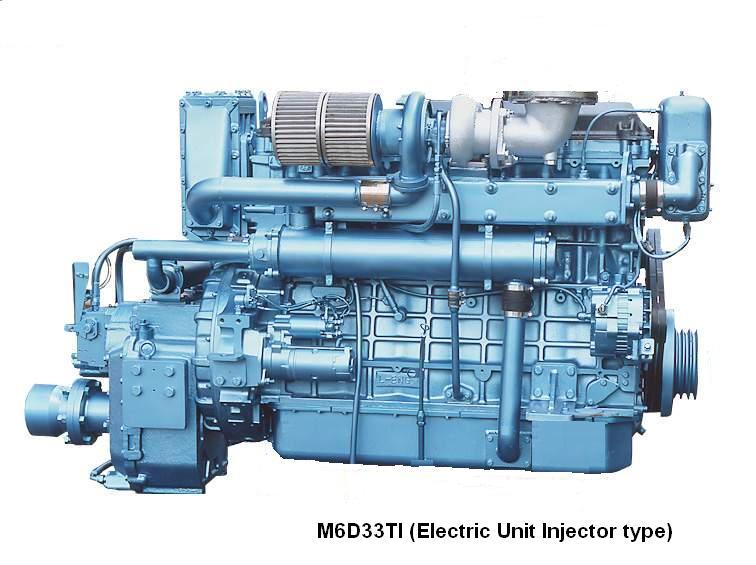

MARINE DIESEL ENGINE, M6D30-SERIES |
|
 |
1. COMPACTLEG EXTENSION DFWC-001
- High Performance
- Low Consumption
- Good endurance.
- Advanced Technology
- Long Durability
- Compact & Light
|
 |
Model
Character |
M6D22 |
M6D22T |
M6D22TO |
M6D22TI |
Engine Type |
4 Cycle, Vertical, Fresh Water cooled Diesel Engine |
Continuous Power/
Revolution(PS/RPM) |
168/2000 |
252/2000 |
283/2000 |
325/2100 |
Number of cylinders |
6 |
Cylinder Bore × Stroke(mm) |
130×140 |
Engine Displacement(cc) |
11,149 |
Aspiration |
NA |
TC |
TCI |
Combustion Type |
Direct Injection |
Compression Ratio |
17.0 |
16.0 |
15.5 |
Fuel |
Diesel |
Lub Oil Type |
API CD
CLASS |
Cooling System |
Heat exchanger type forced circulating by centrifugal pump |
Starting System |
DC 24V
Electric Starting |
Fuel Injection Pump |
BOSCH type with all speed control GOVERNOR |
Standard Reduction Ratio |
2.12, 2.54, 3.12 |
2.07, 2.58, 2.91,3.10, 3.30 |
Dry Weight(kg) |
930 |
960 |
970 |
Firing Order |
1-5-3-6-2-4 |
Specially
modified engine types with low power handling for certain countries.
(by
special order)
M5D20-EM100
max. power output 100HP/1800 RPM
M5D22-EM140
max. power output 140HP/1700 RPM |
|
| Approval of the Korea Institute of Ship Safety and Technology |
|
| M6D16, M6D16T, M6D16TI, M6D30, M6D30T, M6D30TI |
|
